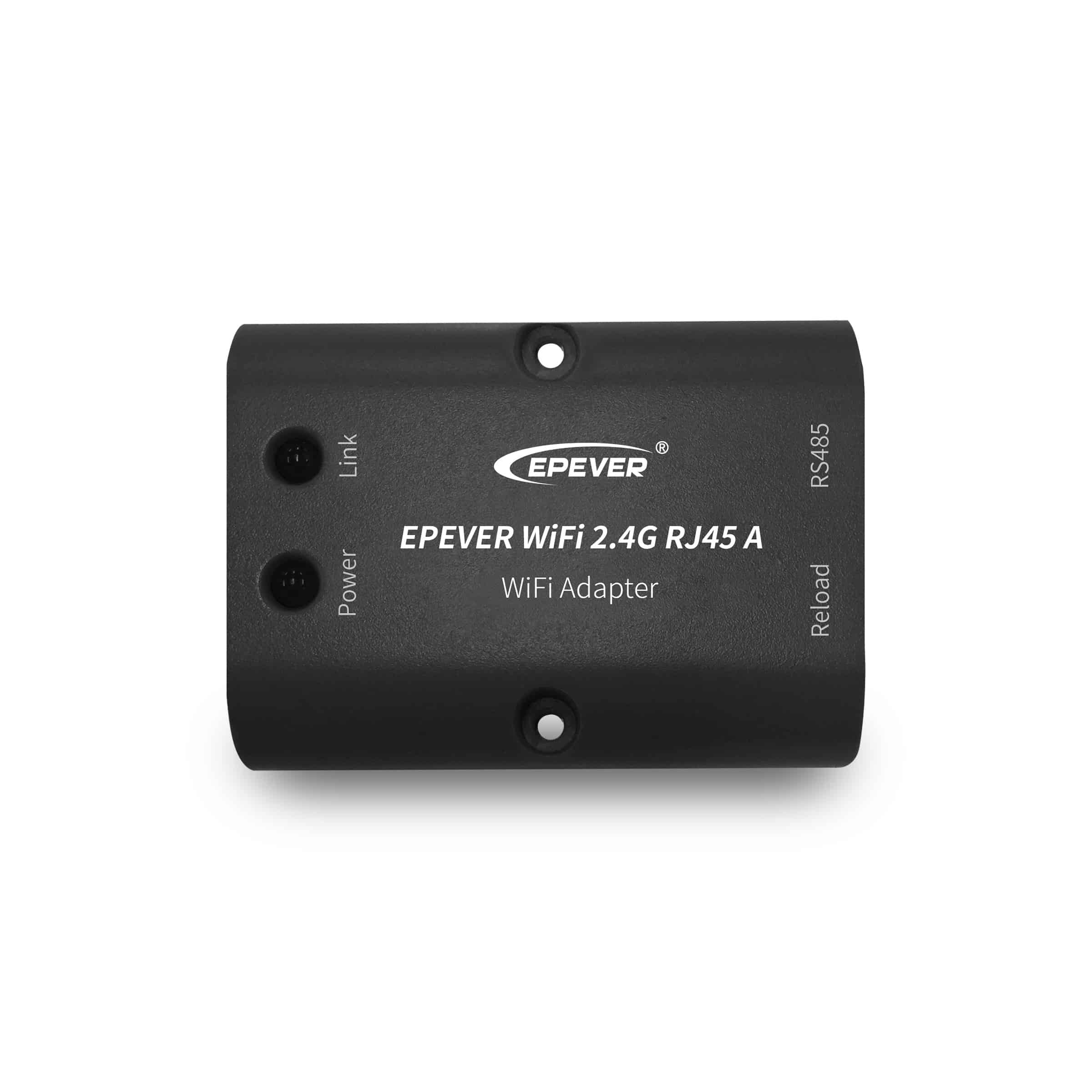

WiFi adapter 2.4G RJ45 A
The WiFi adapter is designed for solar controller, inverter, or inverter/charger, which transmits operational data from EPEVER products to the cloud server in real-time.
The WiFi adapter 2.4G can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real-time through a local WiFi 2.4G network. Users can remotely monitor the connected devices and program parameters via the EPEVER server, mobile APP, or the large screen.
| Mode Parameters |
EPEVER WiFi 2.4G RJ45 | |||||||||||||
| Input voltage | DC5V | |||||||||||||
| Power consumption | Peak emission: 5V@100mA; Idle: 5V@40mA | |||||||||||||
| Enclosure | IP54 | |||||||||||||
| Communication method | RS485 | |||||||||||||
| Com. parameters | 9600 ~ 115200bps, 8N1 | |||||||||||||
| Working Frequency | 2.4~2.4835GHz | |||||||||||||
| Antenna gain | 2.5dBi~ 5dBi | |||||||||||||
| Environment temp. | -40℃~ 85℃ | |||||||||||||
| Com. standard | EPEVER general communication standardV1-1.0 | |||||||||||||
| Com. protocol | EPEVER IoT communication protocol V1.1 | |||||||||||||
| Com. port | RJ45 | |||||||||||||
| Dimension | 66.24* 51.28* 23.76mm | |||||||||||||
| Net weight | 37g | |||||||||||||
EPEVER WiFi 2.4G-Manual-EN-V1.4
EPEVER WiFi 2.4G-Manual-EN-V1.4
Product Highlights
Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 interfaces
Use immediately after connecting, easy and convenient operation
Directly powered by the communication port
Up to 30 meters communication distance
Support the "Local" and " EPEVER Cloud " working mode
One key to restore the factory settings
Igor –
Hi! I cannot register on cloud. Please help!
mason@epever.com –
Hi Sir, already sent it to your email, please check.
Giuseppe –
Buon giorno, non riesco a registrarmi al cloud.
mason@epever.com –
Hi Sir, thanks for reaching us. Your new account has been created, please check your email for the password. Thanks.
Tomislav –
I cannot Register ! Please Help.
mason@epever.com –
Hi Sir, thanks for reaching us. Your new account has been created, please check your email for the password. Thanks.
Pitra –
I can’t register, can you please help me with this? thank you
mason@epever.com –
Hi Sir, thanks for reaching us. Your new account has been created, please check your email for the password. Thanks.
MondayMan –
Hi! I cannot register on cloud. Please help!
mason@epever.com –
Hi Sir, thanks for reaching us. Your new account has been created, please check your email for the password. Thanks.
Daniel K –
Like the rest of us, I can’t register (either through the apps or the website). The device in local mode does not work stably, disconnects
sabrina@epever.com –
Hi sir. Thank you for your comment. Your new account has been created, please check your email for the password.
polo shirt for business –
There is definately a great deal to learn about this subject. I like all the points you made.
sabrina@epever.com –
Thanks for your comments.
sabrina@epever.com –
Thank you for your comment. That is very encouraging.
seben –
Hi folks! Can’t register to epever cloud. Please help me.
sabrina@epever.com –
Hi. We have reset your password and send the new password to your email, please check.
shalma –
pop up error “failed to add networked device (RTU)”. what should i do?
sabrina@epever.com –
Hi shalma. Please email support@epever.com. Our technician will help you.
