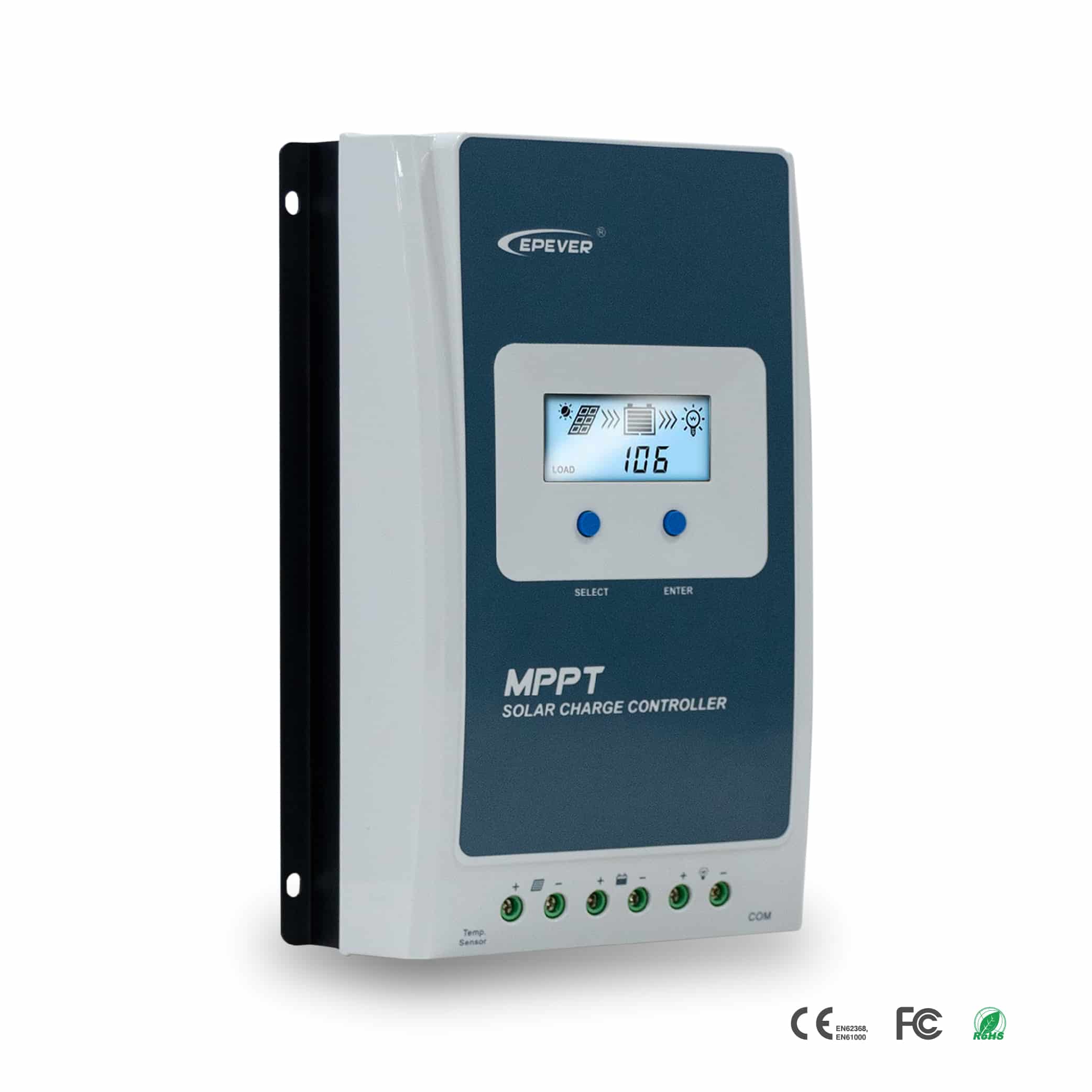

Tracer AN Series (10~40A) MPPT Charge Controller
With an LCD display and RS485 communication port.
Tracer-AN(10A~40A)series charge controller adopts MPPT(Maximum Power Point Tracking)technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multi-functional LCD displays the system status vividly.
| Model | Tracer1206AN | Tracer2206AN | Tracer1210AN | Tracer2210AN | Tracer3210AN | Tracer4210AN |
| Nominal system voltage | 12/24VDC/Auto | |||||
| Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |||||
| Battery input voltage range | 8～32V | |||||
| Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A |
| Rated discharge current | 10A | 20A | 10A | 20A | 30A | 40A |
| Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V |
| Max. conversion efficiency | ≤98.0% | |||||
| Tracking efficiency | ≥99.5% | |||||
| Max. PV open circuit voltage | 60V（At minimum operating environment temperature）; 46V（At 25℃ environment temperature） |
100V（At minimum operating environment temperature）; 92V（At 25℃ environment temperature） |
||||
| MPP voltage range | (Battery voltage +2V)～36V | (Battery voltage +2V)～72V | ||||
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |||||
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |||||
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |||||
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |||||
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |||||
| Self-consumption | ≤12mA | |||||
| Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) | |||||
| Relative humidity | ≤95%, N.C. | |||||
| Enclosure | IP30 | |||||
| Communication interface | RS485(RJ45) | |||||
| Grounding | Common negative | |||||
| Operating temperature range | -25℃～+45℃(100% input and output) | |||||
| Dimensions(LxWxH)(mm) | 172×139×44 | 220×154×52 | 172×139×44 | 220×154×52 | 228×164×55 | 252×180×63 |
| Net weight | 0.57kg | 0.94kg | 0.57kg | 0.94kg | 1.26kg | 1.65kg |
| 1. The controller can't automatically identify system voltage if lithium batteries were connected. | ||||||
| 2. The voltage point is for a 12V system, please *2 in the 24V system. | ||||||
Datasheet
EPEVER-Datasheet-tracer-an(10A-4OA)
Manual
Tracer-AN-Manual-EN-V2.6
Certificates
Certificate EMC Tracer-AN（10-40A）
Certificates
Certificate IEC60950-1 Tracer-AN（10-40A）
Certificates
Certificate FCC Tracer-AN（10-40A）
Certificates
Certificate EN60950-1 Tracer-AN（10-40A）
Certificates
Certificate ROHS Tracer-AN（10-40A）
Product Highlights
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Multiple load work modes
Charging power and current limitation function
High-temperature charging power derating function
Standard Modbus communication protocol with RS485 interface
Real-time energy statistics function
It is required to connect the battery first, if the battery polarity is reversed in this step, the controller has the protection and would not be damaged. But if the user connects the PV first and then, unfortunately, connects the battery polarity reversed, the controller would be damaged. This is caused by lithium battery characteristics.
Negative battery current means battery is discharging, this could happen when no PV or PV power is not enough to power the loads.
