GM3024N is a flush-mounted design. It is suitable for wall mount installation in RV, boats, etc.

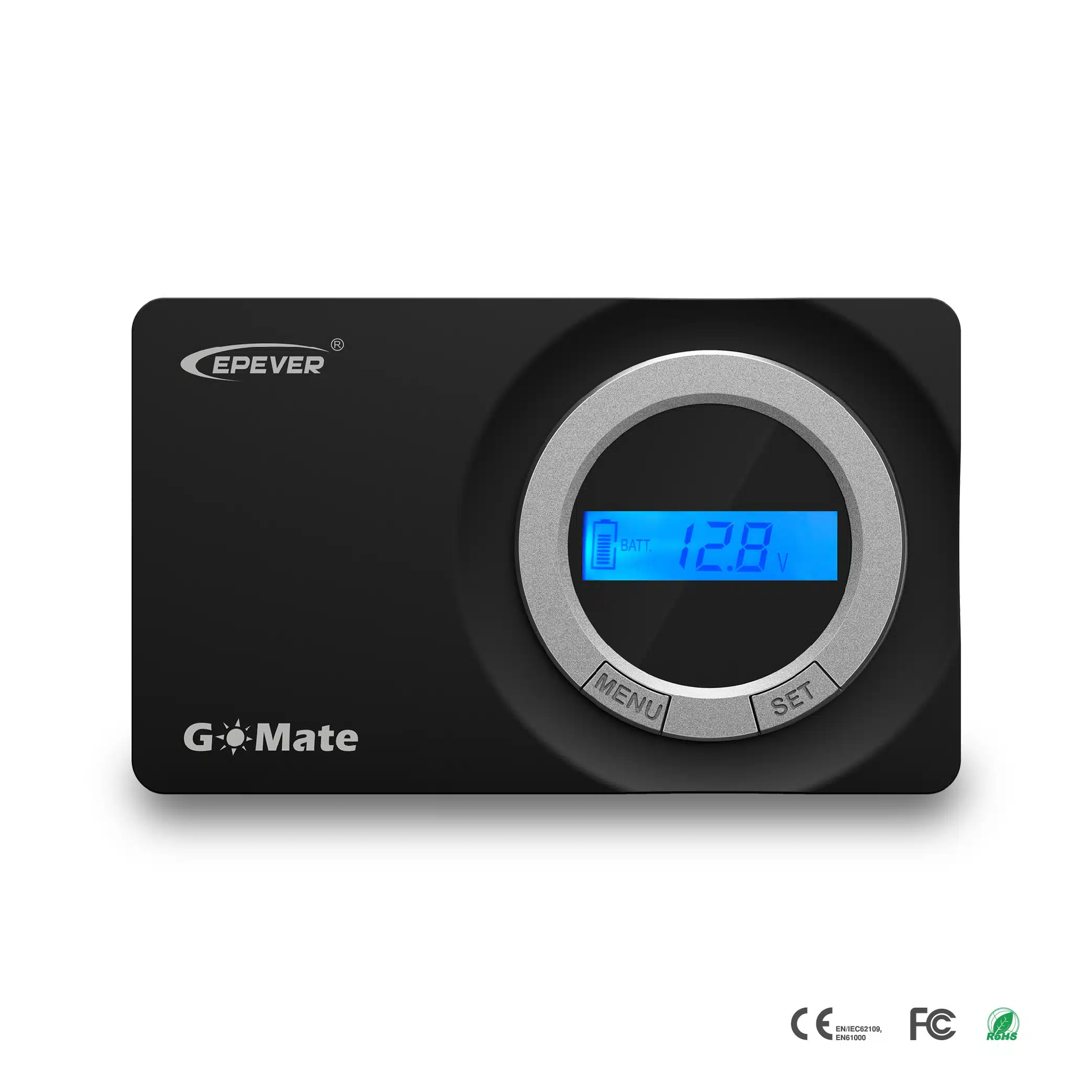

Flush mount solar charger with LCD display.
GoMate is a 30A negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on RV and Vessel. The GoMate adopts highly efficient
PWM charging mode also comes equipped with a special LCD display to show the real-time operating status of the system. The RS485 is used to communicate with the EPEVER WIFI module, Bluetooth adapter, and PC software.
Model | GM3024N |
Nominal system voltage | 12/24VDC/Auto |
Battery type | Sealed(Default)/Gel/Flooded/User |
Battery input voltage range | 8V~32V |
Rated charge current | 30A |
Max. PV open circuit voltage | 50V |
Equalization voltage | Sealed:14.6V,Flooded:14.8V |
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V |
Float voltage | Gel/Sealed/Flooded:13.8V |
Self-consumption | ≤4.2mA/12V;≤2.6mA/24V |
Temperature compensation | ·-3mV/℃/2V(Default) |
Operating temperature range | ·-20℃~+55℃ |
Relative humidity | ≤95%, N.C. |
Enclosure | IP30 |
Communication interface | RS485(RJ45) |
Grounding | Common negative |
Dimensions(LxWxH)(mm) | 178.5×105.5×48.3 |
Net Weight | 0.31kg |
EPEVER-Datasheet-GoMate
GM3024N-SMS-EL-V1.1
Certificate EMC GoMate (30A).pdf
Certificate FCC GoMate (30A).pdf
Product Highlights
Flush mounted and embedded installation design
3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
Battery type: Sealed, Gel, Flooded, and User
Real-time energy statistics feature
Battery temperature compensation feature
Digital LCD monitor for informative display of operational parameters and fault messages

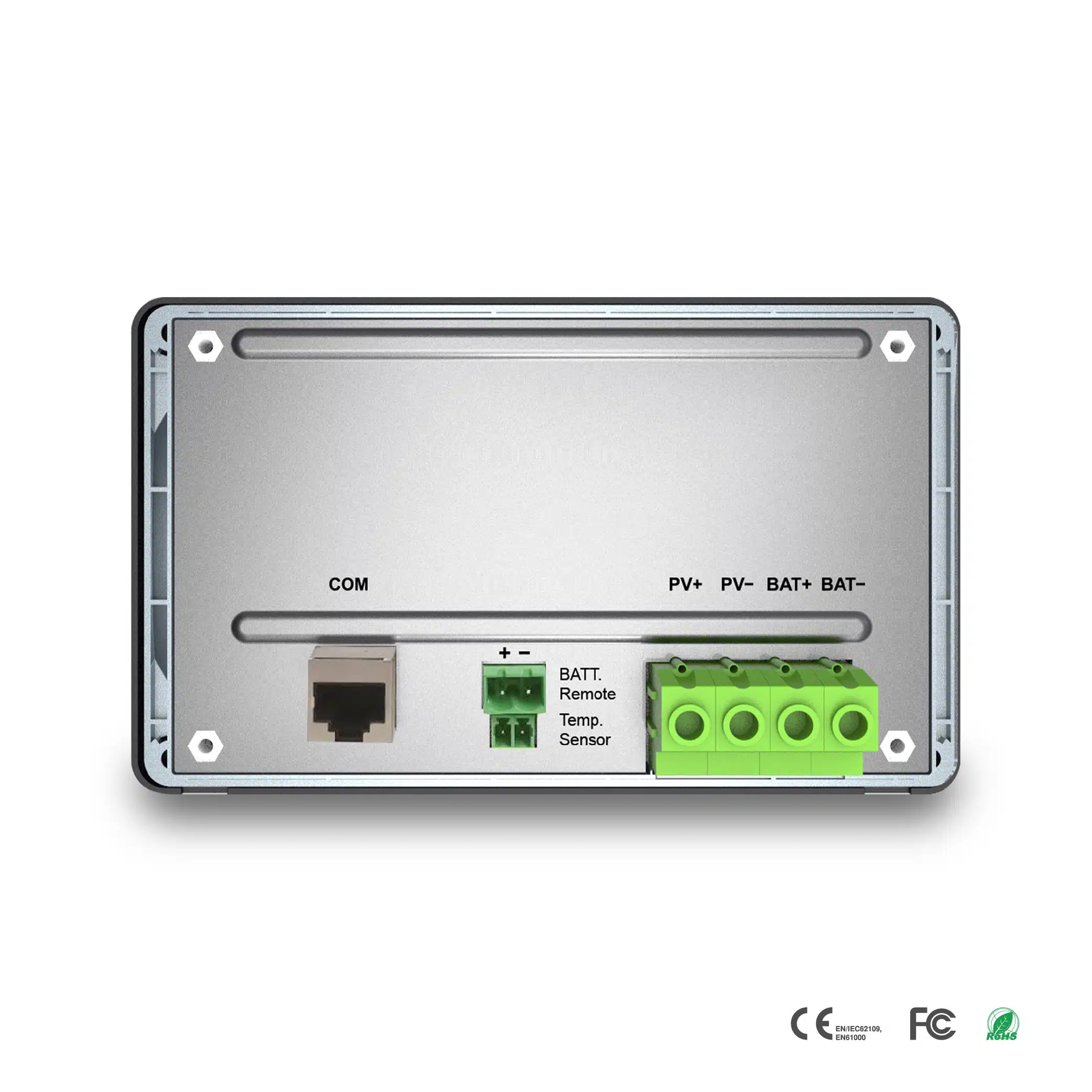

Voltage drop and temperature compensation sampling interface design
RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
Rated charging current at working temperature without de-rating
Extensive electronic protections
Monitor and set the parameters via PC software or APP
GM3024N is a flush-mounted design. It is suitable for wall mount installation in RV, boats, etc.
EPEVER Admin 13 July 2021
To get a more precise battery voltage and control the charging of the battery more accurately.
EPEVER Admin 13 July 2021
The battery voltage on the battery and charger are almost the same, but if the cable is long or the battery current is large, the difference can be enlarged (U=R*I).In this case, Battery Remote Voltage Sampling can be used for the charger to attain precise battery voltage.(The current on the sampling wire is mA level)
EPEVER Admin 13 July 2021
