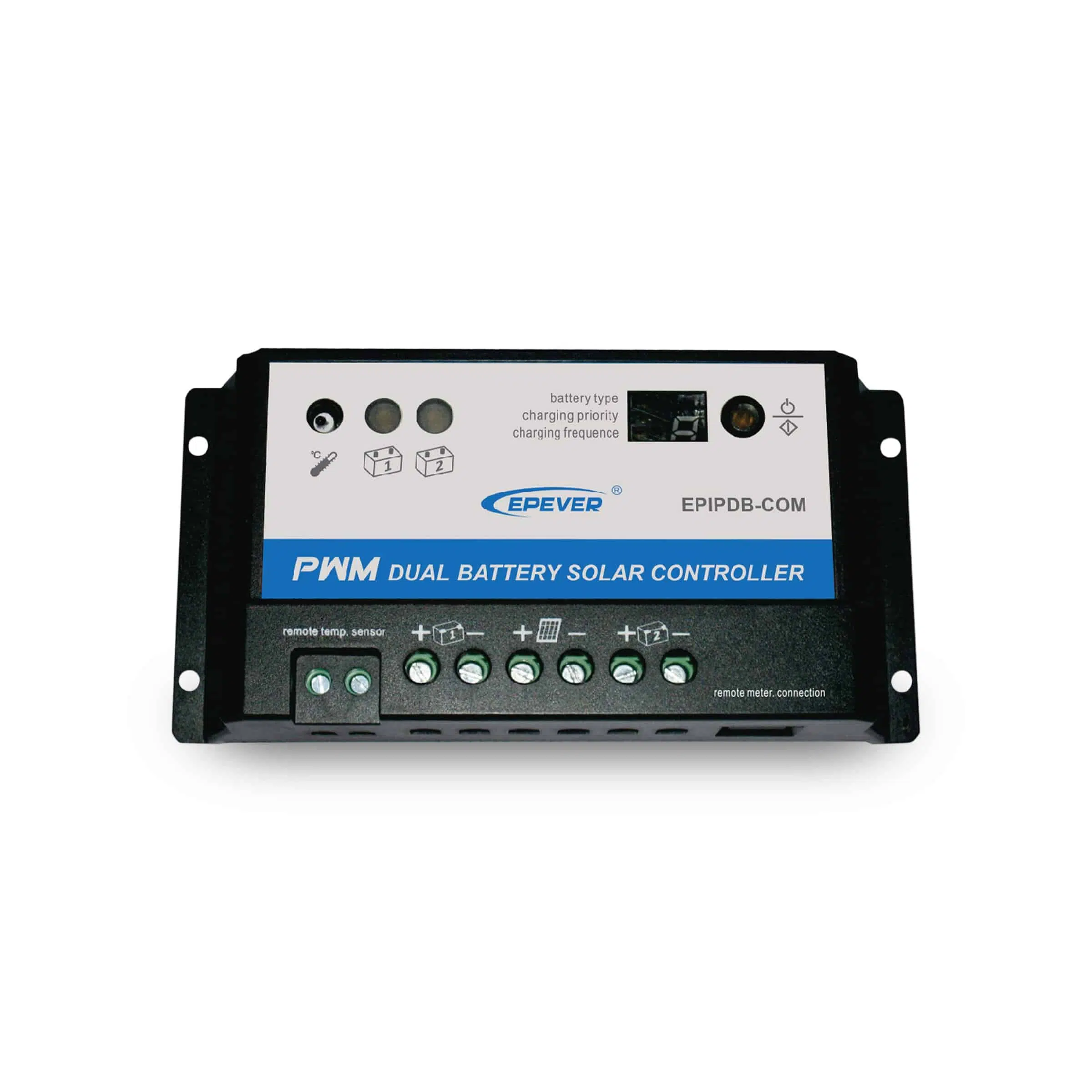

EPIPDB-COM Series(10/20A) Dual Battery PWM Charge Controller
Support with dual battery
EPIPDB-COM series is ideal for use with motorhomes, caravans, boats or anywhere there are two independent batteries for instance a starter battery and a leisure battery. The Charging percentages for each battery can be set manually if required.
| Model | EPIPDB-COM-10 | EPIPDB-COM-20 |
| Nominal system voltage | 12/24VDC Auto | 12/24VDC Auto |
| Rated charge current | 10A | 20A |
| Battery Type | Sealed / Gel / Flooded | |
| Equalize charging voltage | Sealed:14.6V/ Gel:No/ Flooded: 14.8V | |
| Boost charging voltage | Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V | |
| Float charging voltage | Sealed / Gel / Flooded:13.8V | |
| Maximum solar voltage | 30V๏ผ12V System๏ผ/55V๏ผ24V System๏ผ | |
| Battery voltage range | 8๏ฝ15V | 8๏ฝ15V |
| Boost time | 120 minutes | 120 minutes |
| Self-consumption | 4mA at night, 10mA at charging | 4mA at night, 10mA at charging |
| Communication interface | 8- PIN RJ-45 | 8- PIN RJ-45 |
| Temperature compensation( for lead-acid battery) | -5mV/โ/2V | -5mV/โ/2V |
| Terminals | 4mm2 | 4mm2 |
| Operating temperature range | -35โ ๏ฝ +55โ | -35โ ๏ฝ +55โ |
| Net weight | 0.24kg | 0.24kg |
Manual
EPIPDB-COM-Manual-EN-V3.1
Certificates
Certificate EMC EPIPDB-COM
Certificates
Certificate ROHS EPIPDB-COM
Certificates
Certificate EN60950-1 EPIPDB-COM
Product Highlights
12/24V auto
Battery type selection: Sealed, Flooded or Gel
Two battery charging priority programable(from 0-100%)
PWM charging, different frequency option
Optional remote LCD(surface mounting type)
Over charging, short-circuit, reverse polarity & reverse current to PV Protection
EPIP-DB supports a Lead-acid battery(Sealed/GEL/FLD). It can work with only one battery bank also.
No. The communication port of EPIP-DB can work with MT-1 only.
