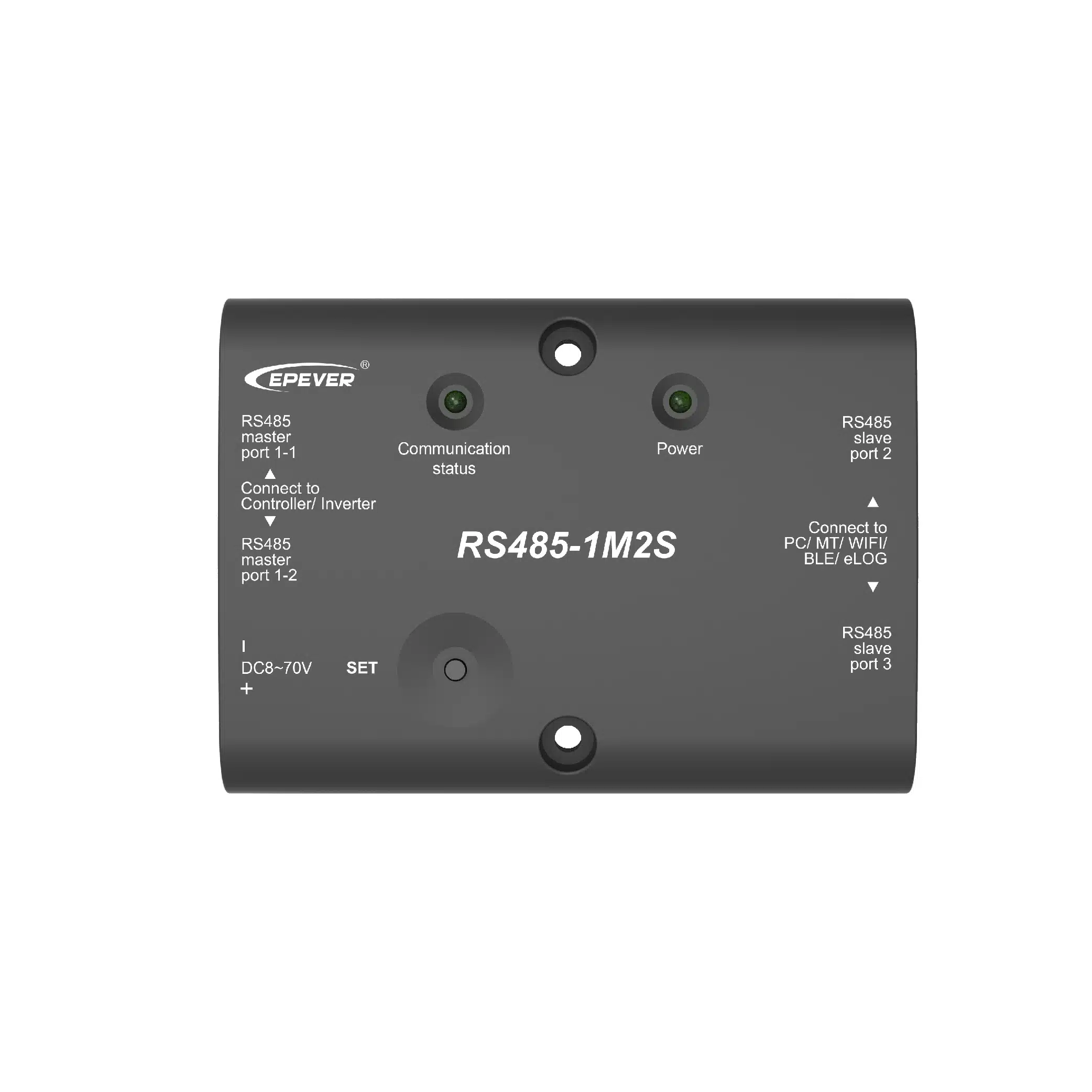

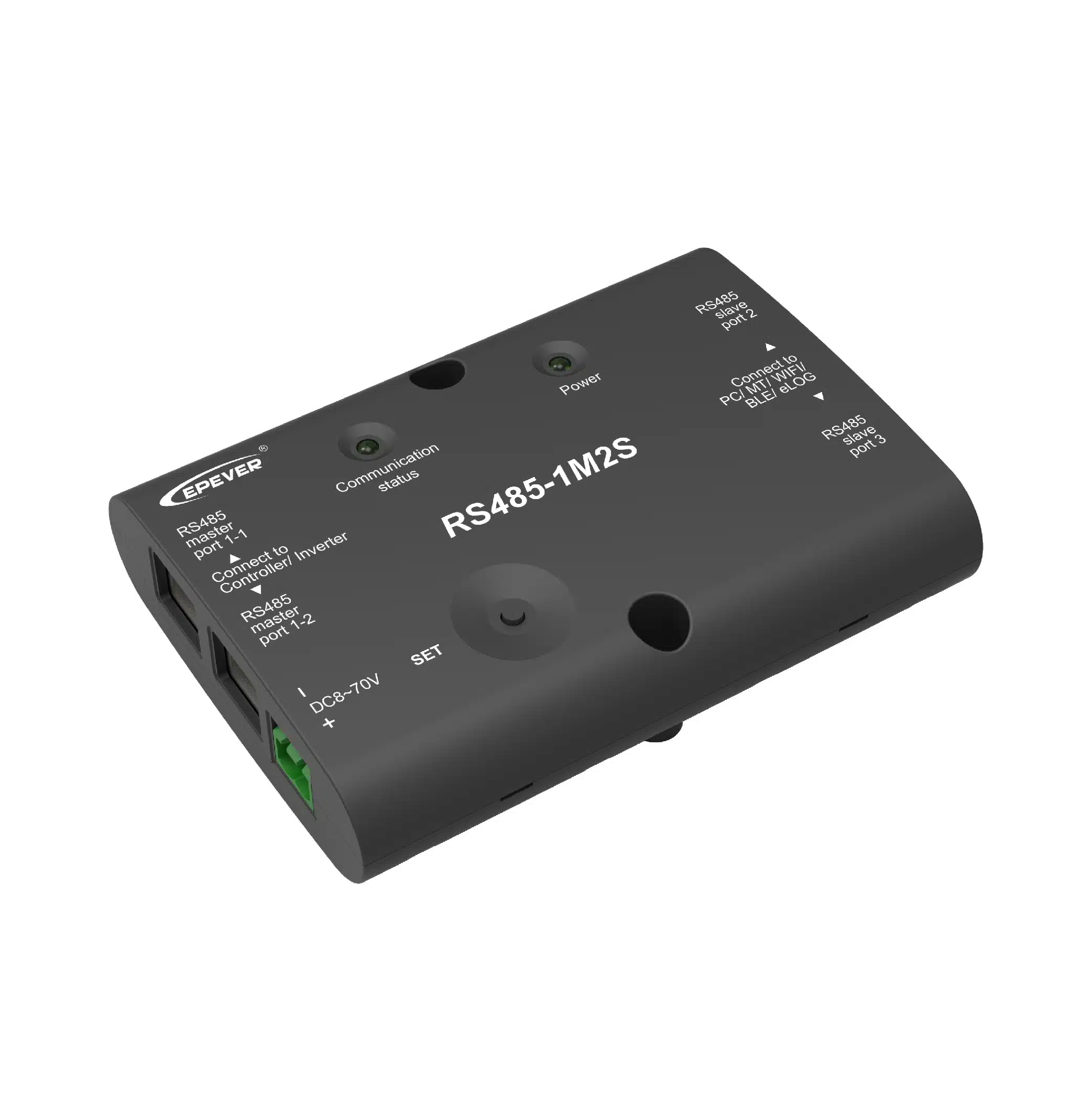

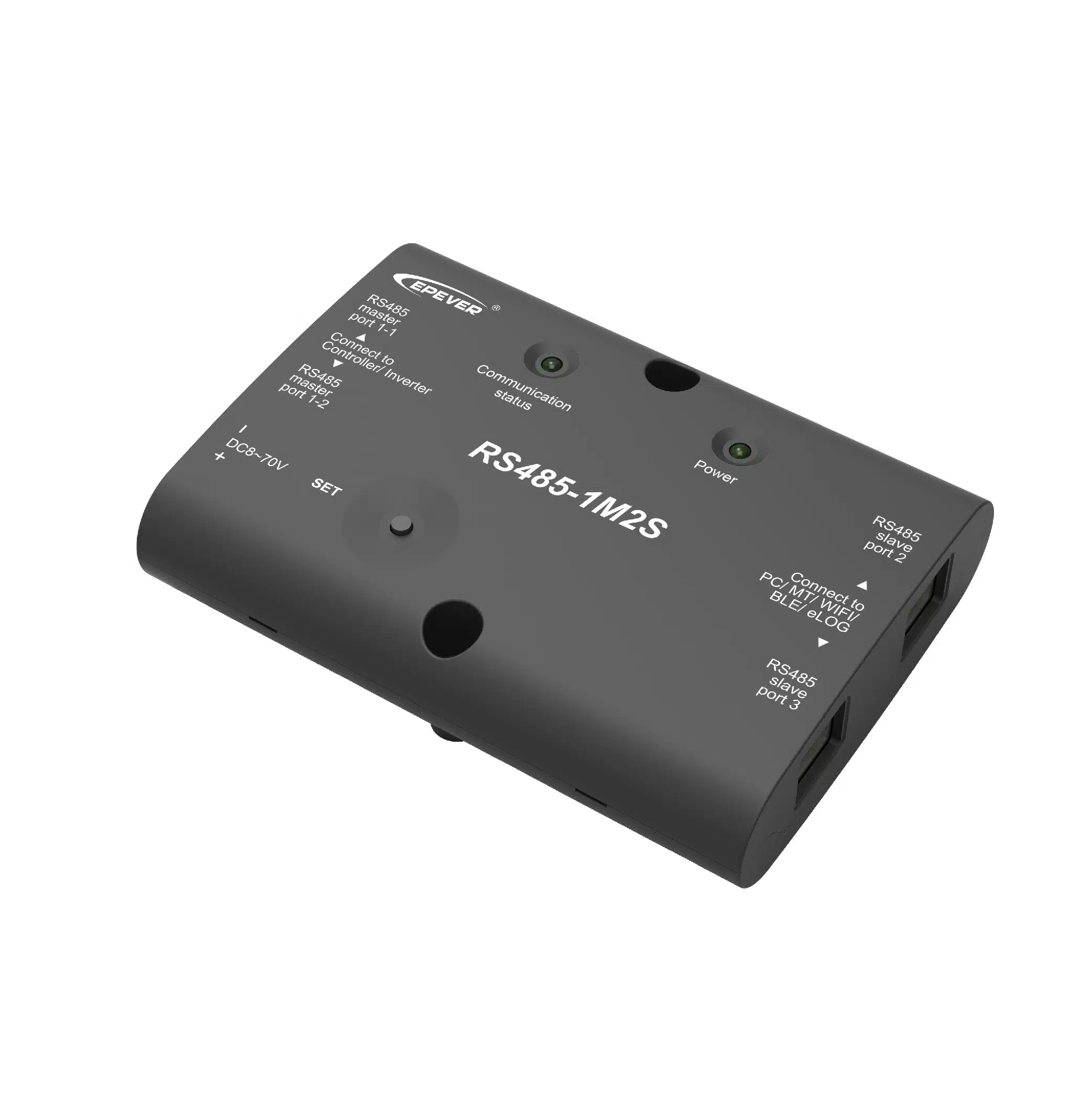

RS485-1M2S Extension Module
The RS485-1M2S extension module is an optional accessory that can extend the RS485 communication port of Epever solar controller/inverter.
The RS485-1M2S is an optional accessory that can extend the RS485 communication port of the EPEVER solar controller, inverter, and inverter/charger. This modular adopting standard Modbus protocol helps users monitor the working status and program parameters for multi devices simultaneously.
| Model | RS485-1M2S |
| Compatible products | Solar controller/inverter |
| Power supply | 5VDC(Power supply by the communication port of solar controller/inverter) |
| Auxiliary power supply | 8~70VDC(Auxiliary power supply by the battery) |
| Power consumption | 0.3W |
| Communication baud rate | 115200 (Default) 9600 |
| Working environment temperature | -30℃～50℃ |
| Storage temperature | -30℃～80℃ |
| Enclosure | IP30 |
| Dimension | 121* 88* 27.5mm |
| Mounting dimension | 69mm |
| Mounting hole size | Φ4.8 |
| Net Weight | 121.8g |
EPEVER-Datasheet-RS485-1M2S
EPEVER-Datasheet-RS485-1M2S
RS485-1M2S-Manual-EN-V1.2
RS485-1M2S-Manual-EN-V1.2
Product Highlights
Data interaction between the solar controller, inverter, inverter/charger, and monitoring devices
Standard Modbus communication protocol
One key to set the communication baud rate 9600/115200
LED indicating working status
