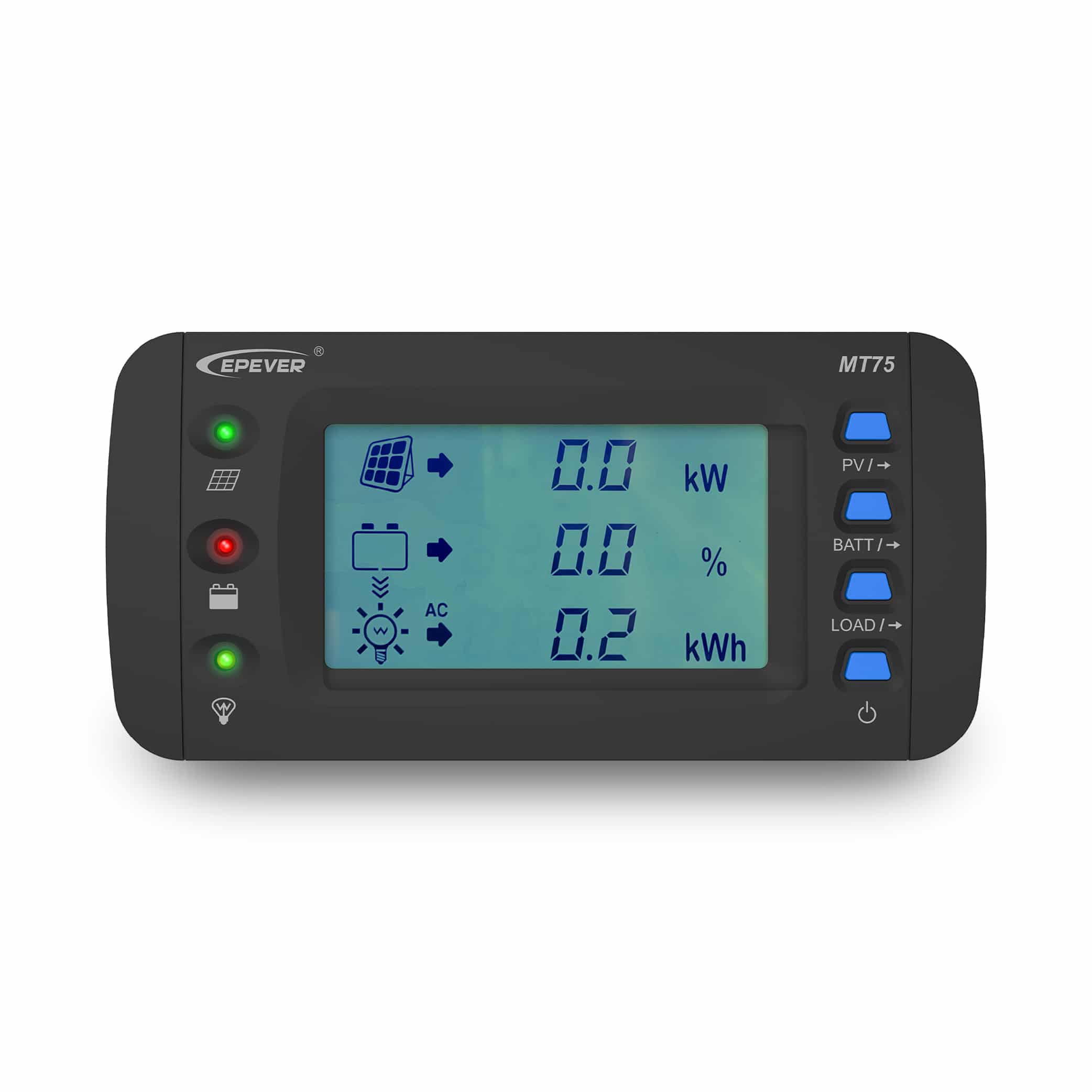

MT75 is a new generation of remote meters that can monitor the EPEVER solar charge controller and inverter on one screen simultaneously.
The MT75 is a new generation of remote meters that can monitor the EPEVER solar charge controllers’ and inverters’ working status simultaneously, and provide users with accurate and comprehensive data analysis, and real-time fault alarm, to ensure the whole systems run more stably and reliably.
Item | MT75 | ||||||||||||||||||||||||||||||
Compatible products | Controller | XTRA-N series/TRIRON series/ Tracer-AN series/Tracer-BN series Note: Required cables for the above products are shipped with MT75. |
|||||||||||||||||||||||||||||
iTracer-AD series/iTracer-ND series Note: Required cables for the above products need additional purchase. |
|||||||||||||||||||||||||||||||
Inverter | IPower series(1kw or above, suitable for applicatfon 1/3)/ IPower- Plus series/NPower series/SHI series | ||||||||||||||||||||||||||||||
Voltage supply | 5VDC | ||||||||||||||||||||||||||||||
Power supply methods | Solar controller communication port Inverter communication port | ||||||||||||||||||||||||||||||
LCD visual angle | 12’ clock | ||||||||||||||||||||||||||||||
LCD backlight | Yes | ||||||||||||||||||||||||||||||
Installation methods | Wall/surface mounting installation | ||||||||||||||||||||||||||||||
Self-consumption | 14mA/5V(no backlight) 26mA/5V(backlight) | ||||||||||||||||||||||||||||||
Working temperature | -20℃〜+65℃ | ||||||||||||||||||||||||||||||
Storage temperature | -20℃〜+80℃ | ||||||||||||||||||||||||||||||
Dimension | 193x94.6x48mm (base) 193x85.2x23mm (no base) | ||||||||||||||||||||||||||||||
Mounting size | 175x50mm(base) 176mm(no base) | ||||||||||||||||||||||||||||||
Mounting hole size | φ5mm(base) φ4.3mm(no base) | ||||||||||||||||||||||||||||||
Net Weight | 0.29Kg(base) 0.22Kg(no base) |
EPEVER-Datasheet-MT75
MT75-Manual-EN-V2.0
Product Highlights
Dual RJ45 communication ports design
Real-time display of fault alarms
Locally reading of real-time parameters
Easy to install and operate
ON/OFF button to control the load DC/AC output
Remote control inverter ON/OFF via the dry contact and enable switch
