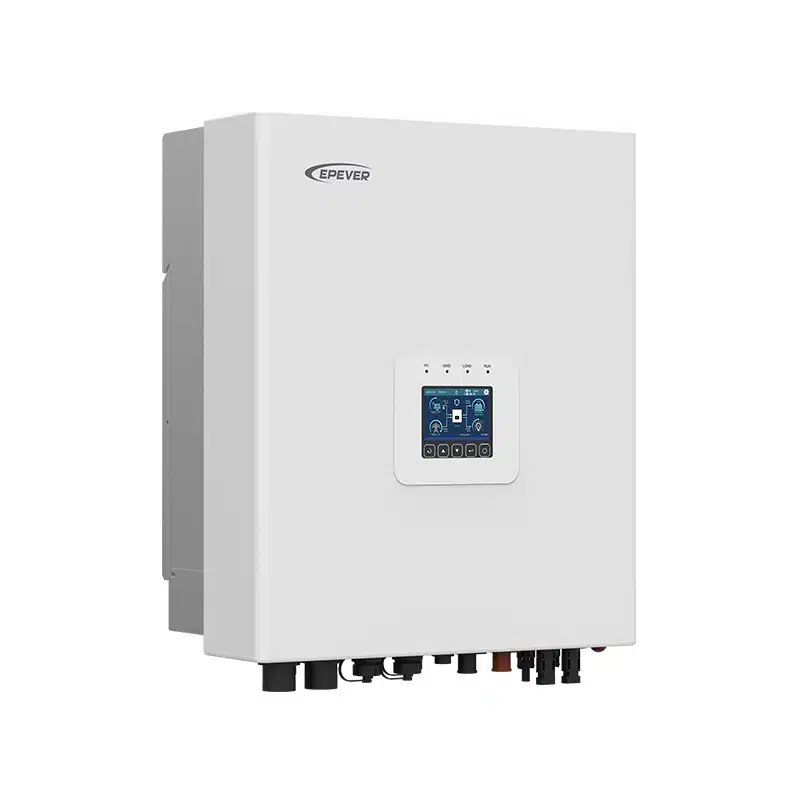

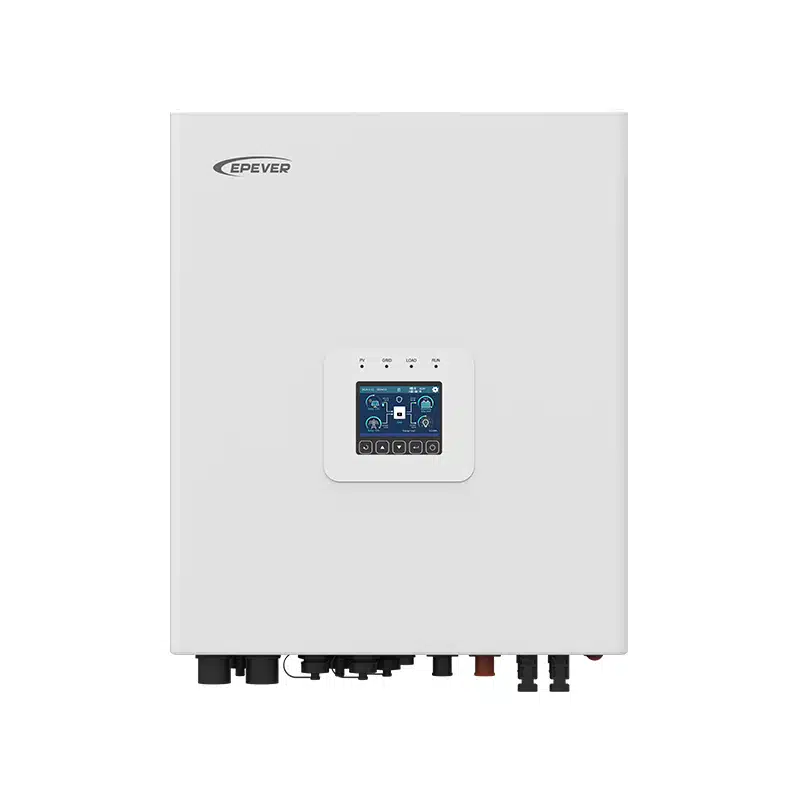

HP Series 65A/C (220/230VAC) 3500W/5500W Inverter/Charger
HP Series 65A/C Inverter/Charger: A reliable off-grid power solution with IP65 protection, MPPT efficiency, and optional touchscreen display.
The HP Series 65A/C (220/230VAC) Hybrid Inverter/Charger delivers powerful off-grid performance with flexible energy input and high environmental durability. Compatible with solar panels, generators, and utility power, it enables smart energy management for both residential and commercial applications.
Available in two display options โ standard LCD (A version) and full-color touchscreen (C version) โ the system offers a user-friendly interface with real-time monitoring, supported by Modbus communication for seamless system integration.
With IP65 protection, the HP Series 65A/C is built for challenging outdoor environments, including humid or corrosive conditions. Its advanced MPPT algorithm maximizes solar charging efficiency, while support for parallel connection ensures scalability for higher load demands.
Operating at less than 45dB, this inverter/charger also meets the needs of quiet environments. Whether for remote homes or demanding off-grid systems, the HP Series 65A/C stands out for its reliability, adaptability, and ease of use.
| Model | HP3522-AH1250P65A | HP3542-AH0650P65A | HP5542-AH1050P65A |
| Utility input | |||
| Utilityย Inputย Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | |
| Utilityย Inputย Frequency | 45Hz~65Hz | 45Hz~65Hz | |
| Maximum Utility Charging Current | 110A | 60A | 100A |
| Switch Response Time | Switch Response Time โ Inverter to Utility: 10ms Switch Response Time โ Utility to Inverter (when the load power is higher than 100W): 20ms |
Switch Response Time โ Inverter to Utility: 10ms Switch Response Time โ Utility to Inverter (when the load power is higher than 100W): 20ms |
|
| Inverter output | |||
| Inverter Rated Power (@30โ) | 3500W | 3500W | 5500W |
| 3-second Transient Surge Output Power | 7000W | 7000W | 8500W |
| Inverter Output Voltage | 220/230VACยฑ3% | 220/230VACยฑ3% | |
| Inverter Frequency | 50/60Hzยฑ0.2% | 50/60Hzยฑ0.2% | |
| Output Voltage Waveform | Pure Sine Wave | Pure Sine Wave | |
| Load Power Factor | 0.2~1(VA โค Rated output power) | 0.2~1(VA โค Rated output power) | |
| THDu (Total Harmonic Voltage Distortion) | โค3%ย (24V resistive load) | โค3%ย (48V resistive load) | |
| Maximum Load Efficiency | 89% | 92% | 91% |
| Maximum Inverter Efficiency | 93% | 94% | 94% |
| Solar controller | |||
| PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25โ) |
500V (At minimum operating environment temperature) 440V (At 25โ) |
|
| MPPTย Voltage Range | 85~400V | 85~400V | |
| Number of MPPTs | 1 | 1 | 2 |
| PV Maximum Input Current | One way, 20A/way | One way, 20A/way | Two ways, 2x15A |
| PV Maximum Input Power | 4000W | 4000W | 2ร3000W |
| PV Maximum Charging Current | 120A | 60A | 100A |
| MPPT Maximum efficiency | โฅ99.0% | โฅ99.5% | |
| Battery | |||
| Battery Rated Voltage | 24VDC | 48VDC | |
| Battery Work Voltage Range | 21.6VDC~32.0VDC | 43.2VDC~64VDC | |
| Battery Maximum Charging Current | 120A | 60A | 100A |
| Others | |||
| No-load Losses | <1.3A | <0.6A | <1.0ย A |
| Test condition:ย Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input | ||
| Standby Current | <0.3A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input | <0.15A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input | |
| Work Temperature Range | -20โ~+55โย (When the environment temperature exceeds 35โ, the actual output power is reduced appropriately) | -20โ~+55โย (When the environment temperature exceeds 35โ, the actual output power is reduced appropriately) | |
| Storage Temperature Range | -25โ~+60โ | -25โ~+60โ | |
| Enclosure | IP65 | IP65 | |
| Relative Humidity | < 100% (N.C.) | < 100% (N.C.) | |
| Altitude | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |
| Mechanical parameters | |||
| Dimension (Length x Width x Height) | 545mm ร 428mm ร 248mm | 537mm ร 428mm ร 246mm | 545mm ร428mm ร248mm |
| Mounting Size (Length x Width) | 350mm x 130mm | 350mm x 130mm | 350mm x 130mm |
| Mounting Hole Size | ฮฆ10mm | ฮฆ10mm | ฮฆ10mm |
| Netย Weight | 25.0kg | 21.0kg | 25.4kg |
Manual
EPEVER-Manual-HP Series 65A_V1.1
Manual
EPEVER-Manual-HP Series 65C_V1.1
DataSheet
EPEVER-DataSheet-HP Series 65A
DataSheet
EPEVER-DataSheet-HP Series 65C
Product Highlights
High IP65 protection rating, suitable for harsh outdoor environments: salt spray and humidity
Pure sine wave output
AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity
Supports battery or non-battery modes
Compatible with various battery types: lithium, gel, sealed, etc
Equipped with BMS communication interface for safe charge and discharge control of lithium batteries
PFC technology provides power factor, reducing grid capacity consumption
Supports charging from various types of generators
MPPT technology with a maximum tracking efficiency greater than 99.5%
HP5542-AH1050P65A/C supports two PV inputs to improve PV utilization
RS485 communication interface, optional 4G, WIFI modules for remote monitoring
Features a historical data recording function with a storage capacity of 25,000 entries, configurable recording intervals from 1 to 3600 seconds
Comprehensive electronic protection functions to maximize system reliability
Noise reduction design with noise level below 45dB
-20โ~55โ operating temperature range to meet more environmental requirements
