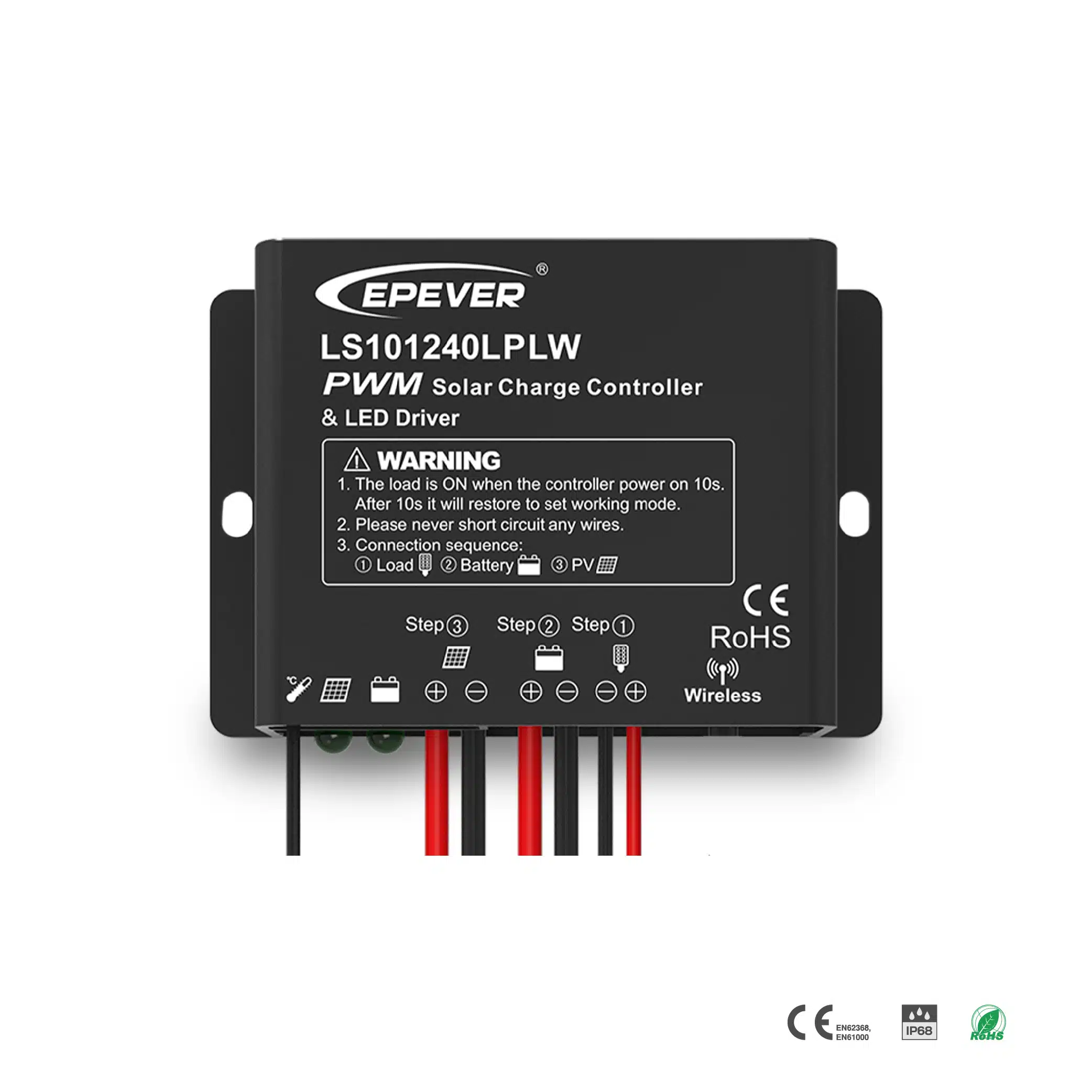

LS-LPLW Series(10/20A) PWM Charge Controller & LED Driver
With a built-in LED driver, IP68 ingress protection, and 2.4G communication.
- Description
- Additional Information
- Download
- Highlights
- FAQ
- 3D View
- Online Submit
- Additional information
- Reviews 1
The LandStar LPLW series is PWM solar charge controller that combines solar charge controller and LED constant current driver into one unit. It has multiple load control modes which are ideal for various solar LED Lighting applications, especially when a dimming function is needed. It adopts the 2.4G wireless communication method, to enable cross-obstacle communication when the controller is installed inside the LED lamp or the lighting pole.
| Model | LS101260LPLW | LS2024120LPLW |
| Nominal system voltage | 12VDC | 12/24VDC Auto |
| Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |
| Battery input voltage range | 9V๏ฝ16V | 9V๏ฝ32V |
| Rated charge current | 10A | 20A |
| Max. output power | 60W | 60W/12V 120W/24V |
| Max. PV open circuit voltage | 30V | 50V |
| Max. output current | 4.0A | 4.0A |
| Output voltage range | (Max. Battery Voltage +2V)๏ฝ60V | (Max. Battery Voltage +2V)๏ฝ60V |
| Maximum output efficiency | 96% | 96% |
| Output current control accuracy | ||
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |
| Self-consumption | โค19mA(12V)๏ผโค35mA(24V) | โค19mA(12V)๏ผโค35mA(24V) |
| Enclosure | IP68(1.5m,72h) | IP68(1.5m,72h) |
| Communication interface | 2.4G | 2.4G |
| Operating temperature range | -40โ๏ฝ+55โ | -40โ๏ฝ+55โ |
| Dimensions(LxWxH)(mm) | 87x63x24.8 | 108.5x118x25.6 |
| Net Weight | 0.20kg | 0.40kg |
Datasheet
EPEVER-Datasheet-LS-LPLW
Manual
LS-LPLW-Manual-EN-V2.3
Product Highlights
2.4G wireless
communication design
PWM charging mode
Support lead-acid and lithium-ion batteries
Lithium battery self-activating function
Intelligent power derating to ensure 365 days lighting on
Multiple load control modes (Including midnight working mode)
Ultra-low power consumption mode (4mA)
Customizing parameter by password verify
Automatic load test feature during installation
IP68 protection class (1.5 meters, 72h)
2.4G communication has stronger signal penetration (through plastic/aluminum housing). The communication can reach 20m.
