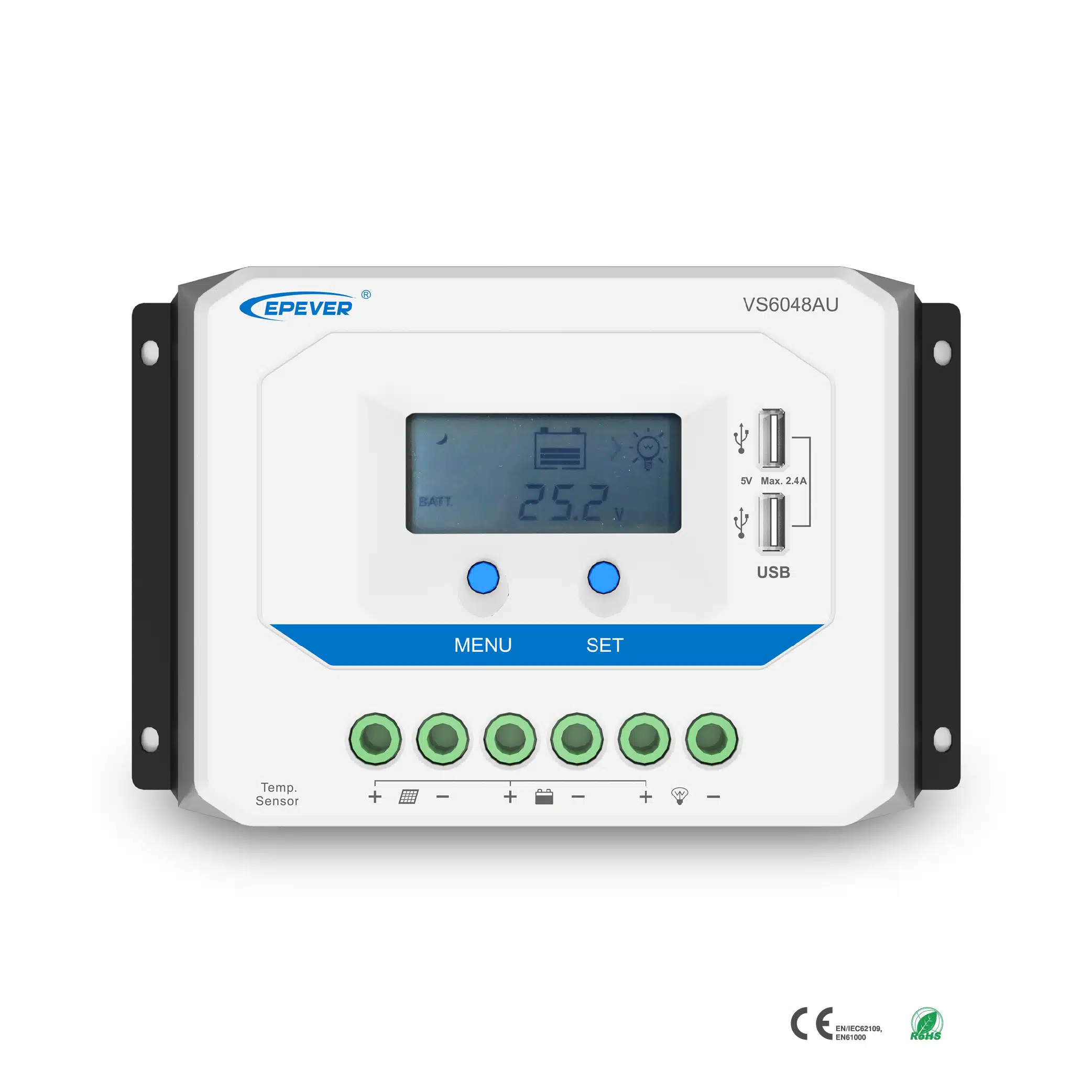

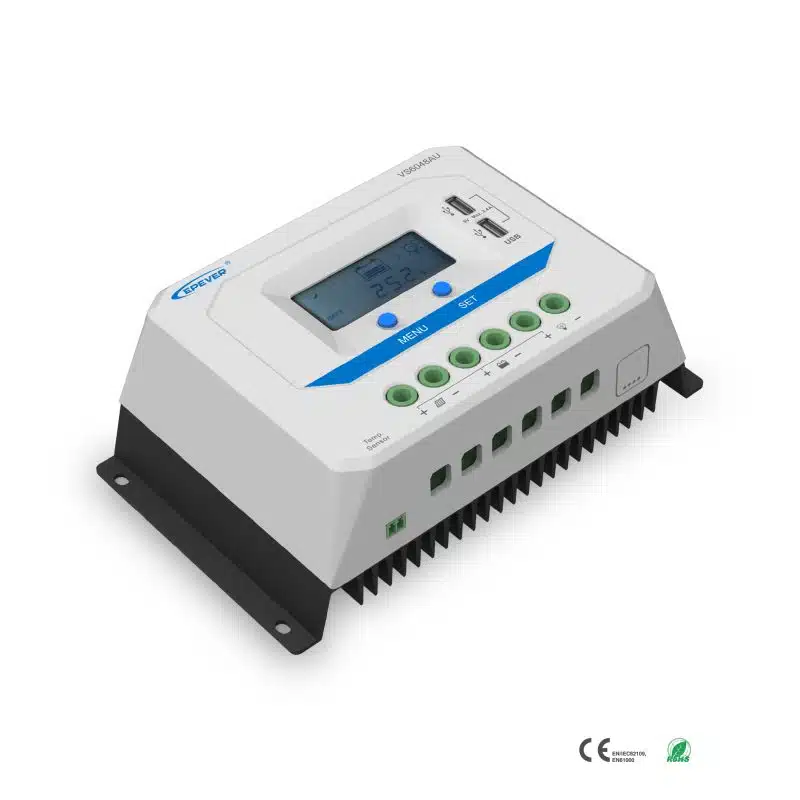

VS-AU Series(10~60A) PWM Charge Controller
With LCD display and two USB ports
VS-AU series is a PWM charge controller with LCD display and two USB ports. When the gap between solar panel working voltage and battery voltage is not big, choosing this PWM series is an equally reliable but more cost-effective solution. It is widely applied to rural Electrification and home power systems etc.,
| Model | VS1024AU | VS2024AU | VS3024AU | VS3048AU | VS4524AU | VS4548AU | VS6024AU | VS6048AU |
| Nominal system voltage | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto |
| Battery type | Sealed(Default)/Gel/Flooded | |||||||
| Battery input voltage range | 9V～32V | 9V～32V | 9V～32V | 9V～64V | 9V～32V | 9V～64V | 9V～32V | 9V～64V |
| Rated charge current | 10A | 20A | 30A | 30A | 45A | 45A | 60A | 60A |
| Rated discharge current | 10A | 20A | 30A | 30A | 45A | 45A | 60A | 60A |
| Max. PV open circuit voltage | 50V | 50V | 50V | 96V | 50V | 96V | 50V | 96V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V | |||||||
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V | |||||||
| Float voltage | Gel/Sealed/Flooded:13.8V | |||||||
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V | |||||||
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V | |||||||
| Self-consumption | ≤9.2mA/12V;≤11.7mA/24V;≤14.5mA/36V;≤17mA/48V | |||||||
| USB output | 5VDC/2.4A(Total) | |||||||
| Temperature compensation | -3mV/℃/2V（25℃） | |||||||
| Relative humidity | ≤95%, N.C. | |||||||
| Enclosure | IP30 | |||||||
| Grounding | Common Positive | |||||||
| Operating temperature range | -25℃～+55℃ | |||||||
| Dimensions(LxWxH)(mm) | 142×85×41.5 | 160×94.9×49.3 | 181×100.9×59.8 | 181×100.9×59.8 | 194×118.4×63.8 | 194×118.4×63.8 | 214x128.7x72.2 | 214x128.7x72.2 |
| Net Weight | 0.22kg | 0.35kg | 0.55kg | 0.58kg | 0.76kg | 0.88kg | 1.02kg | 1.04kg |
Datasheet
EPEVER-Datasheet-VS-AU
Manual
VS-AU-Manual-EN-V2.1
Certificates
Certificate EMC ViewStar-AU
Certificates
Certificate IEC62109 ViewStar-AU
Certificates
Certificate ROHS ViewStar-AU
Product Highlights
Series PWM charging mode
Full power working at working temperature range
Multiple load control modes
Adopt high quality, high-reliability international brand components
Double USB design
Segment LCD display design
Real time energy statistics function
Extensive electronic protection
The two USB ports are paralleled, the total power is 2.4A/5V, so it is 2.4A/5V too if the only USB port is used. If overloaded, there will be over current protection or even damage to the controller.
graliontorile –
Very interesting subject , thanks for posting.
Nemat Osmani –
Hi
How can I set the limit for discharge voltage?
It stopped at 11.3 volt, I want it to go to 9.9 in 3s 33 p battery pack of lithium ion battery
mason@epever.com –
Thanks for reaching us! Vs-au is a PWM controller, which cannot be connected to a lithium battery. At the same time, this controller can only select the battery type and cannot change parameters
Bakti –
Epever PWM VS-AU6024 what the max solar panel Wp can be install?
mason@epever.com –
Hi Bakti, thanks for reaching us. If your battery voltage is A, then A x 60A would be the max solar panel Wp in this case.
