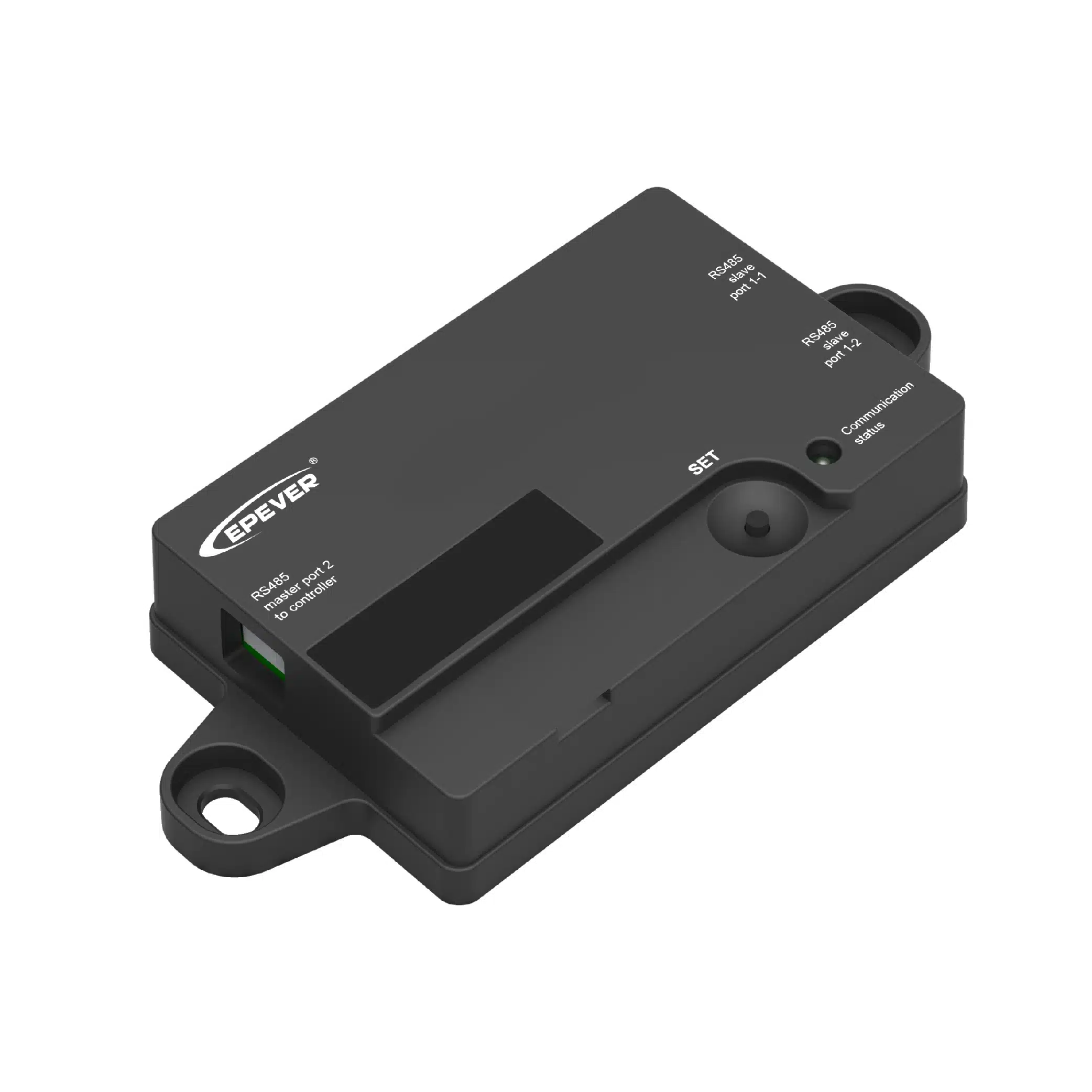

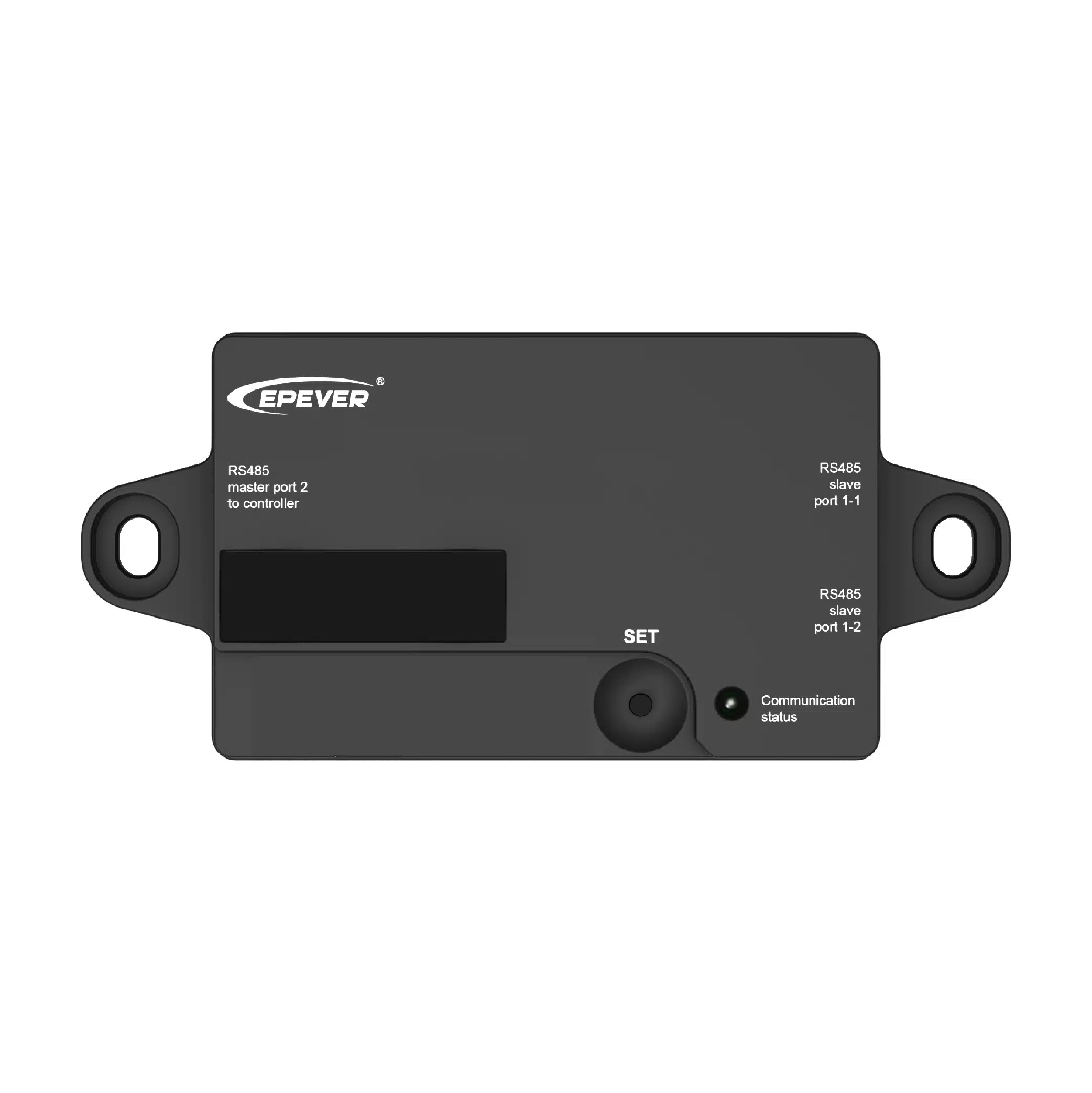

PAL-ADP-50AN Parallel Adapter
The PAL-ADP-50AN is a parallel that can automatically change the controllers’ charging and operational status.
The PAL-ADP-50AN is a parallel adapter for adjusting the charging current of multiple controllers connected to the battery in parallel, which monitors the charging and operational status in real-time. The adapter automatically changes the controllers' charging and operational status according to the battery level to prolong the controller lifetime.
| Item | PAL-ADP-50AN |
| Apply to model | Tracer AN(50-100A) series solar controller |
| Input voltage | 5VDC(Directly provided by the controller) |
| Operation power consumption | 0.25W |
| Serial port baud rate | 9600 115200(Default) |
| Overall dimension | 151.5*69.9*25.7mm |
| Mounting Dimension | 133.4mm |
| Mounting hole size | ฮฆ6.5 |
| Working temperature | -35~55โ |
| Enclosure | IP30 |
| Weight | 30g |
EPEVER-Datasheet-PAL-ADP-50AN
EPEVER-Datasheet-PAL-ADP-50AN
PAL-ADP-50AN-Manual-EN-V3.0
PAL-ADP-50AN-Manual-EN-V3.0
Product Highlights
Consistent control parameters of multiple controllers
Current sharing by intelligently adjust each controller's charging current
Support up to 6 controllers in parallel
Support standard Modbus communication protocol
External remote monitor units by the RS485 communication bus
One button to set the communication baud rate 9600/115200
LED indicating working status
